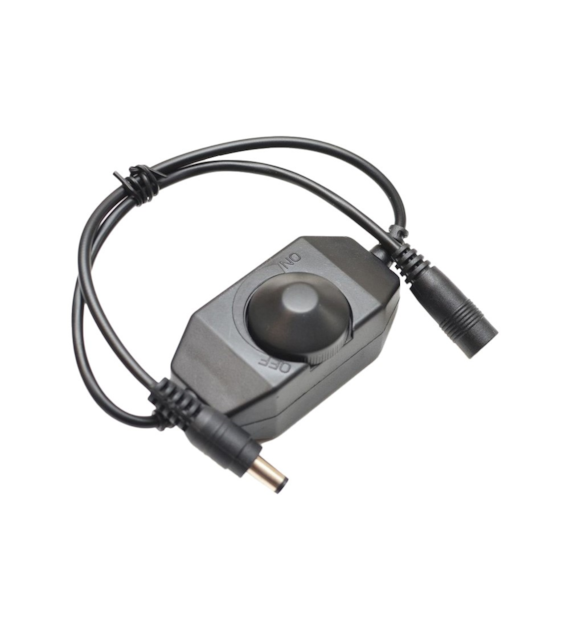

48W manual black LED dimmer

Categories: LED control \ LED dimmers

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

ID-2086

Barcode

5901874270948

Basic unit

szt.

Weight

0.05 kg

Unit packaging width (cm)

5.5

Unit package height (cm)

3.5

Unit packaging depth (cm)

9.5

Collective packaging weight (kg)

9.1

Collective packaging width (cm)

Collective packaging height (cm)

Collective packaging depth (cm)

Collective packaging volume

0.05

Załączniki

Instrukcja

Ostrzeżenia bezpieczeństwa

Description

Manual LED dimmer 4A black

Application:

For single-color LED installations. Potentiometer with switch for brightness adjustment

Input voltage:

12V -24V DC

Max output current:

Output power:

48W for 12V, 96W for 24V

Connections to the installation:

Power and output wires approximately 15 cm long, terminated with a plug and DC 5.5/2.1 socket

Brightness adjustment method:

PWM - pulse width modulation

Degree of protection:

IP20

Memory of previous settings:

YES

Operating temperature:

From -20°C to + 60°C

Dimensions:

86.6 x 62.4 x 26.4 mm

Weight:

98g

Warranty:

2 years

Certificates:

CE, RoHS

Functional dimmer for single-color MONO strips. Signal channel dimmer, which can adjust brightness from 0-100%. Its control mode iscontrol via a knob, you canadjust the light to the appropriate brightnessof the lighting according to actual needs. The device is adjustable in the range of 0-100% brightness, allowing for complete shutdown of the LED strip.Easy to install and simple to use.

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which cannot, however, constitute the basis for any claims..
