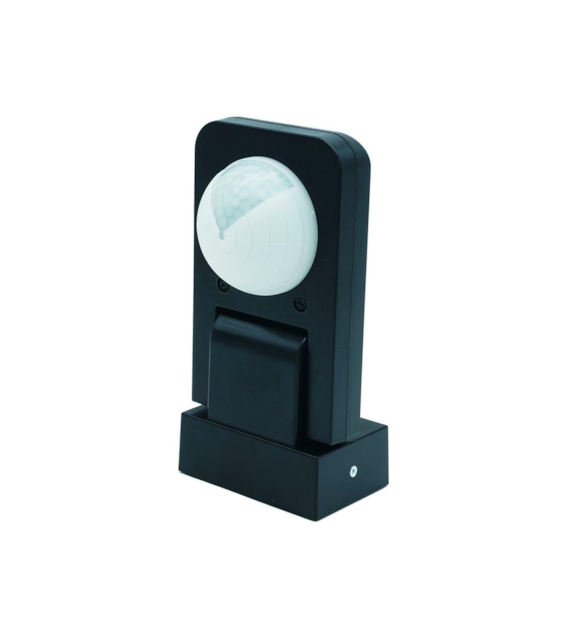

Adjustable black PIR motion sensor
Detection range:
20m at a temperature <24°C
Activation time:
min 10sec ±3sec
max 30min ±2min
Maximum power of controlled lamps:
1000W LED lamp
2000W incandescent sources
Light sensor:
<3-2000LUX
Detection field:
360°
Operating temperature:
between -20°C and +40°C
Recommended installation height:
2.2-6m
Power supply:
220-240V 50Hz
Sensor type:
infrared (PIR)
Dimensions:
172.5 x 86.5 x 56 mm
Power consumption:
< 0.5W
Degree of protection:
IP65
Operating humidity:
<93%RH
Declarations:
RoHS, CE
Warranty:
2 years
The device is designed to turn on and automatically turn off after a set lighting time. It uses infrared emitted by the human body to operate - (Passive Infra Red PIR sensor).
