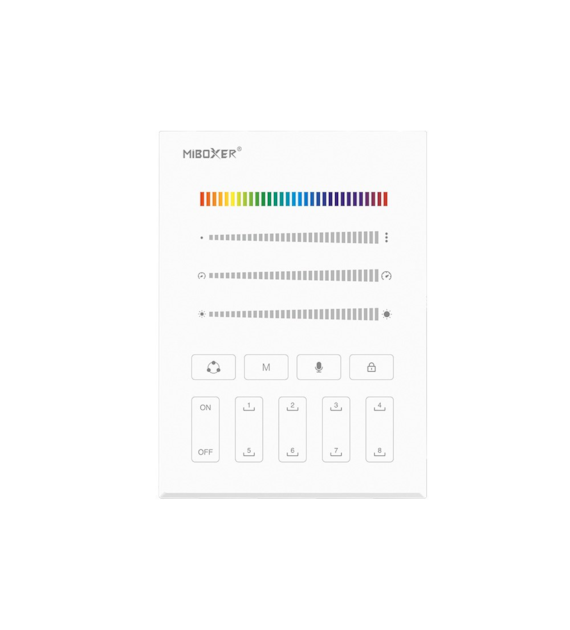

B9 SPI touch stage panel for digital LED strips white (SPIW5)

Categories: LED control \ MIBOXER

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

B9-W

Basic unit

szt.

Protection class:

IP20

Frame color:

White

Installation:

Wall-mounted

Digital LED strip:

TAK

Power supply:

Baterie

Unit packaging width (cm)

Unit package height (cm)

Unit packaging depth (cm)

B9 SPI touch stage panel for digital LED strips white (SPIW5)

Załączniki

Instrukcja

Description

White B9 panel for digital LED strip

Product name: SPI Panel Remote (2.4GHz)
Model: B9-W
Operating voltage: 3V (2 × AAA)
Power consumption in standby mode: 15 μA
Transmission power: 6 dBm
RF: 2.4 GHz
Modulation method: GFSK
Control distance: 30 m
Operating temperature: −10~40 °C
EMC standard: ETSI EN 301 489-1 V2.2.3 (2019-11); ETSI EN 301 489-3 V2.3.2 (2023-01)
Safety standard (LVD): EN 61347-2-11:2001 + A1:2019; EN 61347-1:2015 + A1:2021; EN 62493:2015 + A1:2022
Radio equipment (RED): ETSI EN 300 440 V2.2.1 (2018-07)
Certification: CE, EMC, LVD, RED

Features:

Match the color and adjust the length (number of pixel points) of the SPI strip, select dynamic mode, and control the speed, save the scene. The 2.4G wireless transmission technology provides high transmission speed, stable signal, and high resistance to interference.

Control multiple devices simultaneously; supports communication with multiple devices
Change dynamic mode, color, brightness, and dynamic lighting functions
Edit width and color in dynamic mode
Setting time and color for the ON/OFF function
Compatible with multiple controllers (control range up to 30 m)
Magnetic holder for easy installation
Wide application in commercial and home lighting — creates atmospheric lighting effects

Works with SPIR5 or SPIW5 controller
