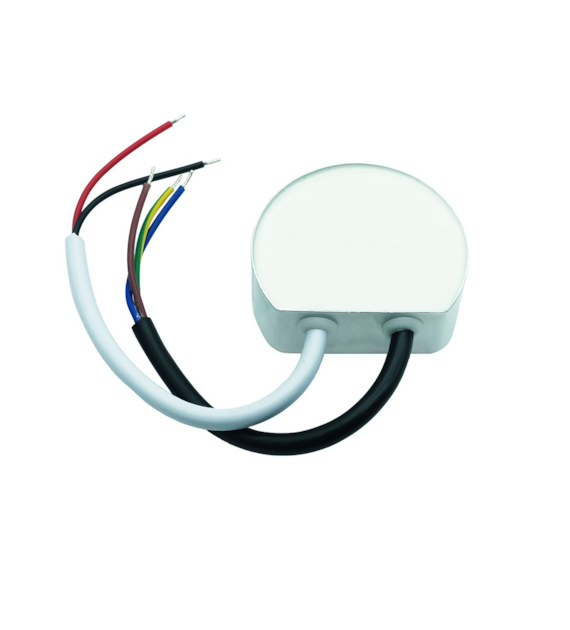

LED power supply for recessed box24V15W IP67
AC mains voltage:
AC 100 -265V
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
requires the use of
Maximum continuous output power:
15W
Maximum output current:
0.63A
Operating temperature:
-30°C÷75°C
Energy processing method:
switching power supply
Protections:
overload (OCP),
overvoltage (OVP),
short-circuit (SCP),
thermal (OTP)
Connection method:
released wires approximately 10 cm long
Housing type:
housing made of aluminum sheet filled with silicone,
External dimensions:
diameter 57mm x 25mm
The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage spikes.This is very important forprotecting sensitive LED diodesand other components.
The use of the transformer galvanically isolates the load from the power grid, which is fundamentallyimportant for electrical safetyof users. The output voltage of 24V is safe for people.
Due to theround shapeinstallation inside an electrical boxflush-mounted is possible.With the increased degree of protection, it will perform well in humid places and exposed to rain, as well as in places exposed to dust.Due to the increased degree of protection (against the effects of temporary immersion in water and dust-tight protection), it will work well in humid places and those exposed to rain, as well as in areas exposed to dust.
