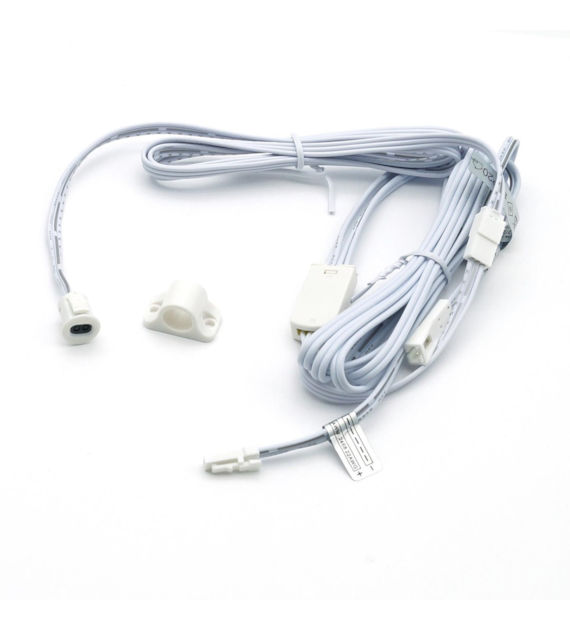

Sensor switch for white cabinets
Supply voltage:
12-24 V DC /constant voltage e.g. from the power supply/
Output voltage:
12-24 V DC JST mini cable
Maximum power of controlled lamps:
60W for 12V, 100W for 24V
Maximum current output:
5A (for 12V), 4A (for 24V)
Color:
White
State after power failure:
Off
Operating range:
up to 5 cm
Usage:
Indoor
Operating temperature:
between -10°C and + 40°C
Main structural features:
Device with dimensions Ø12x13 mm
Wires 15cm/150cm/100cm (in/out/sensor)
Degree of protection:
IP 20
Safety class:
Class III
Declarations:
RoHs, CE
Warranty:
2 years
Principle of operation:
The sensor switch for doors/drawers activates the electrical circuit when, for example, the cabinet door is opened and deactivates it after the door is closed.
The device is used to illuminate the interior of drawers, shelves, display cases, etc.
