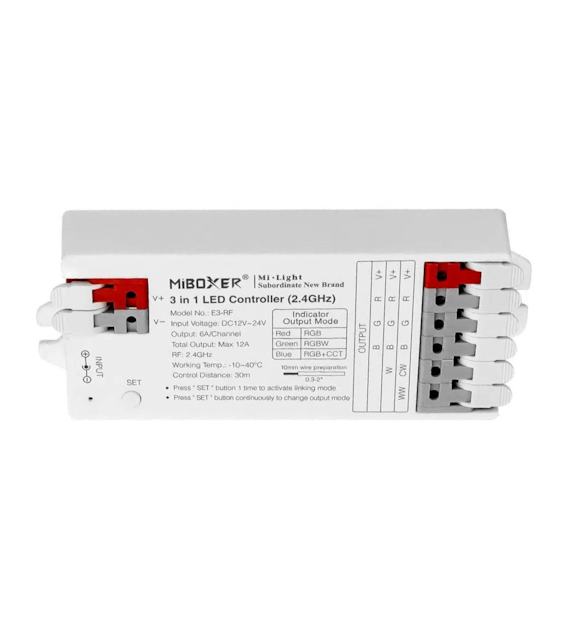

Parameters:

• Installation type: 3in1 with selection options (RGB/ RGB+W/ RGB+CCT)

• Lighting control system: PWM

• Lighting control method: radio, wireless (mobile app: tuya, alexa, requires 2.4Ghz gateway)

• Output type of the controller: CV (constant voltage)

• Rated voltage: input/output - 12-24V DC

• Output current per channel: 6A

• Maximum output current: 12A

• Number of controller outputs: 5 outputs

• Output connection type: common anode

• Communication type: bidirectional

• Communication range: up to 30 meters in open terrain with the possibility of extending through signal retransmission

• Return to previous settings when turned off from the transmitter: yes

• Compatibility with external systems: Amazon Alexa, Google Assistant, Siri Shortcuts, IFTTT (requires 2.4Ghz gateway)

• Operating temperature: from -10 to + 40°C

• Ingress protection class: IP20

• Installation: surface-mounted

• Additional functionality/feature: compatibility with Tuya Smart (requires 2.4Ghz gateway)

• Dimensions: 100 x 40 x 17.6 mm

• Safety declarations and standards: CE, RoHs

• Manufacturer's warranty: 24 months

Features:

• Instant wiring without tools (quick installation)

• Application for RGB/ RGB+W/ RGB+CCT installations

• Dimming and brightening lighting

• Adjustment of white light temperature

• 16 million colors to choose from

• Possibility to expand the installation at any time

• Instant reduction of light intensity for the zone

• Smartphone app control (2.4GHz gateway required)

• Support for third-party voice control (2.4GHz gateway required)
