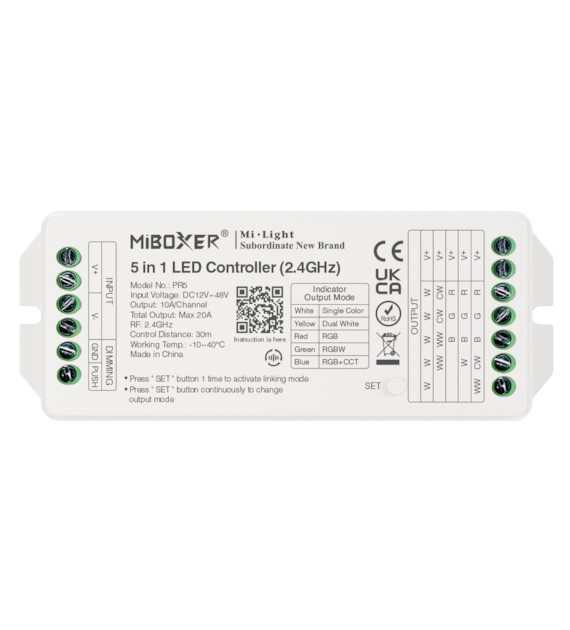

Parameters:

• Installation type: 5in1 with selection options (RGB+CCT, RGB+W, RGB, CCT, DIM)

• Lighting control system: PWM

• Lighting control method: WiFi and Bluetooth technology, additionally voice, radio, wireless (mobile app: tuya, alexa, 2.4Ghz)(2.4GHz gateway required), push button

• Output type of the controller: CV (constant voltage)

• Rated voltage: input/output - 12-48V DC

• Output current per channel: 10A

• Maximum output current: 20A

• Number of controller outputs: 5 outputs

• Output connection type: common anode

• Communication type: bidirectional

• Communication range: up to 30 meters in open terrain with the possibility of extending through signal retransmission

• Return to previous settings when turned off from the transmitter: yes

• Compatibility with external systems: Amazon Alexa system, Google Assistant (voice)

• Operating temperature: from -10 to + 40°C

• Ingress protection class: IP20

• Installation: surface-mounted

• Additional functionality/feature: compatibility with Tuya Smart (2.4GHz gateway required)

• Dimensions: 119 x 47 x 23 mm

• Safety declarations and standards: CE, RoHs, RED, LVD, EMC

• Manufacturer's warranty: 24 months
