Parameters:

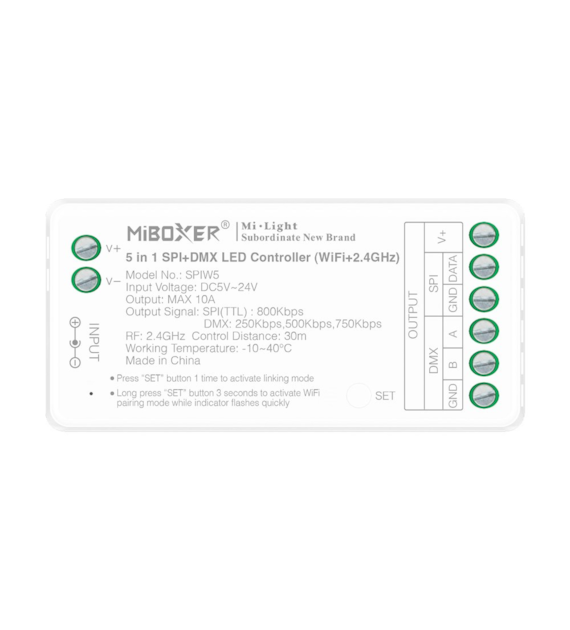

• Product Name: 5 in 1 SPI+DMX LED Controller (WiFi+2.4G)
• Model: SPIW5
• Input voltage: DC5V~24V
• Maximum load current: 10A
• Output signal: Max 1024 Pixel
• Control protocol: SPI + DMX512
• Supported LED chips: WS2811, WS2818, SK6812, TM1914, UCS1903, etc.
• Communication method: WiFi + 2.4GHz RF
• 2.4G control distance: 30 m
• Operating temperature: −10~40 °C
• Protection degree: IP20
• EMC standard: ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4
• Safety standard (LVD): EN 62368-1; 2020+A11;2020
• Radio equipment (RED): ETSI EN 300 440 V2.2.1
• Certification: CE, EMC, LVD, RED

Features:

SPIW5 5 in 1 (SPI+DMX, WiFi+2.4G)is equipped with a dual communication protocol SPI/DMX and supports an input voltage of DC 5–24V. It is a special controller designed for SPI type LED strips. The device uses wireless technology WiFi + 2.4G, allowing the setting of various functions such as: mode selection, color adjustment, brightness, and changing dynamic lighting effects via the applicationTUYA SMARTor remotesC9andB9.

• 5 in 1 LED controller:monochrome / CCT / RGB / RGBW / RGBCCT
• Color adjustment, number of pixel points, speed, static and dynamic mode
• Dynamic mode:28 types of white colors to choose from, 80 types of RGB colors; in all modes, color, brightness, width, and speed can be adjusted.
• 8 music modesworking with the built-in microphone or smartphone microphone
• Free switching between dynamic and music mode
• Ability to set the startup animation via the TUYA SMART application
• Output signal:SPI (TTL) 800 Kbps, DMX: 250 Kbps, 500 Kbps, 750 Kbps
• DND mode (Do Not Disturb):usually used in areas prone to power outages to save energy

WARNING!

Works ONLY with remote C9, or B9
