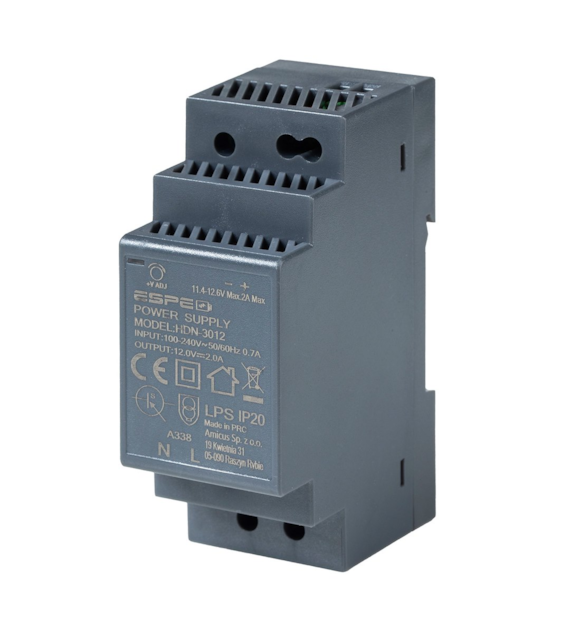

ESPE-HDN3012it is a high-quality, efficient switching power supply in a plastic housing for mounting on a DIN rail TS35 mm wide 2U. Its design is based on high-class electronic components that enable continuous and long-lasting operation. The device is reliable, fully protected, and stable. It provides high efficiency and excellent technical parameters. The perforated housing ensures good ventilation, and the trimmer allows for precise voltage adjustment, compensating for voltage drops on the wires. Double output terminals facilitate the connection of receivers.
Specification
Input parameters
- Input voltage range: 100–240 VAC
- Input frequency range: 47–53 Hz
- Power consumption without load: below 0.25 W
Output parameters
- Regulation type: CV – constant output voltage
- Nominal output voltage: 12 V
- Trimmer adjustment of output voltage: 11.4–12.6 V
- Rated output power: 24 W
- Rated load current: 2 A
- Maximum output voltage ripple: 150 mVp-p
- Energy conversion efficiency: above 86%
Additional information
- Operating temperature range: from 0 °C to +40 °C
- Output protections: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP)
- Input protections: overvoltage (OVP), undervoltage (UVP)
- MTBF: 30 000 h
- Dimensions: 90 × 58 × 35 mm
- Weight: 70 g
- Housing: IP20
- Warranty: 5-year warranty
Characteristics
- Compact dimensions
- High output power
- Made of high-quality electronic components
- Versatile protections, low inrush current
- Voltage adjustment trimmer
- Perforated housing providing good ventilation
- LED indicator signaling operation
Applications
- Industrial automation systems
- Alarm and monitoring systems
- Building automation installations
- Lighting systems
