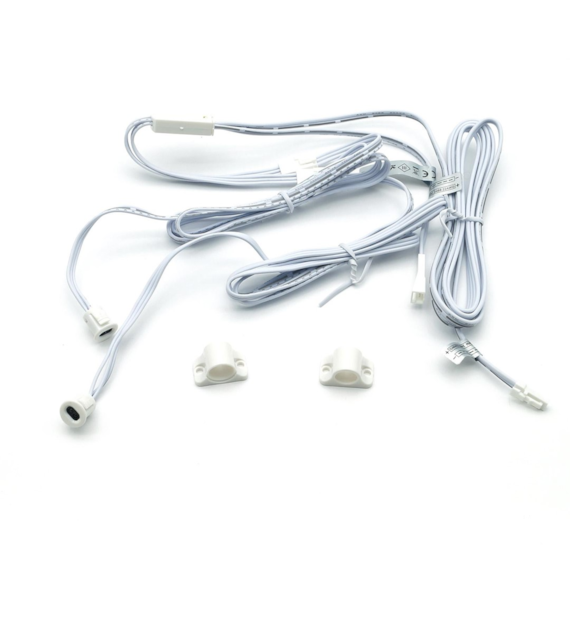

Double sensor switch for cabinets white
Supply voltage:
12-24 V DC /constant voltage e.g. from the power supply/
Output voltage:
12-24 V DC JST mini cable
Maximum power of controlled lamps:
60W for 12V, 100W for 24V
Maximum current output:
5A (for 12V), 4A (for 24V)
Color:
White
State after power failure:
Off
Operating range:
up to 5 cm
Usage:
Indoor
Operating temperature:
between -10°C and + 40°C
Main design features:
Device dimensions 22x13x13 mm
Wires 15cm/150cm/100cm (in/out/sensor)
Degree of protection:
IP 20
Safety class:
Class III
Declarations:
RoHs, CE
Warranty:
2 years
Principle of operation:
Double sensor switch for cabinets, which can turn on or off LED strips integrated into cabinets, shelves, and many other furniture without the need for a touch switch.
It will turn on when it detects even one of the sensors, e.g. an open door.
