Switch with dimmer for embedding in an aluminum profile with LED strip
Supply voltage:
12/24V DC /constant voltage e.g. from LED lamp power supply/
Output voltage:
12/24V DC with PWM pulse width regulation
State after power failure:
off
Maximum power of controlled lamps:
60W for 12V, 100W for 24V
Maximum output current:
5 A
Dimming range:
Up to about 45% of maximum brightness.
Type of sensor:
Capacitive.The sensor's sensitivity field is a few cm from the spring placed between the printed circuit board (PCB) and the profile cover.
Operating temperature:
between -10°C and + 40°C
Main design features:

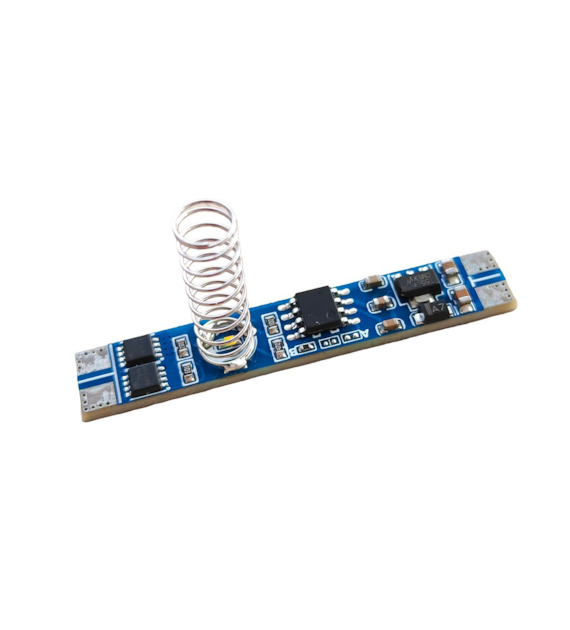

The dimmer takes the form ofa printed circuit board (PCB) measuring 8x40mmallowing placement in the aluminum profile between the LED strip and the power supply. The soldered spring with a height of a few cm should be covered by the profile cover and serves as the point of maximum sensitivity of the system. The board has a contact area allowing for the soldering of connection wires.
Declarations:
RoHS, CE
Warranty:
2 years
The device is intendedfor turning on, turning off, and changing the brightnessof the LED lighting. It can be used in an aluminum profile covered by a cover. Recommended aluminum profiles with a depth of up to 15mm. The switch is invisible from the outside of the housing.
Principle of operation:
Touching the cover switches between on/off states. Holding your hand longer will cause dimming or brightening of the LED light.The operation and readiness of the device is indicated by an LED.
