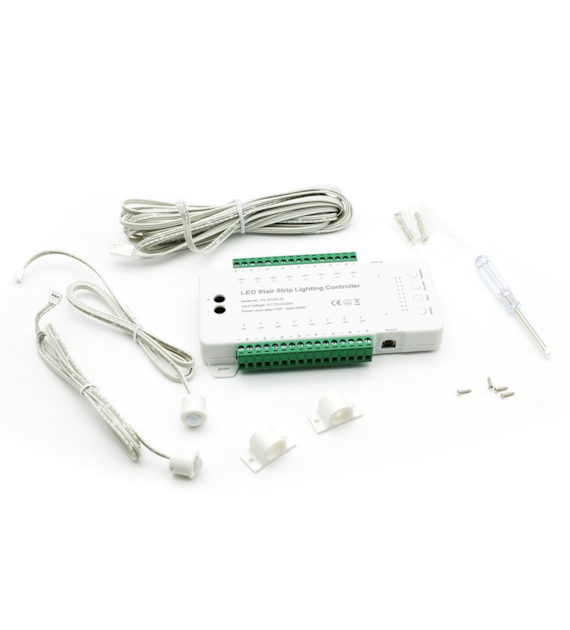

LED PIR stair controller for 16 stairs white
Voltage:
12V -24V DC
Power:
240W (15W per channel)
Number of channels (stairs):
16
Color:
white
Operating temperature:
max. 45°C
Motion sensor:
YES (2 pcs on 80cm wire + 500cm extension)
Motion sensor range:
1.5-2m
Wide motion detection angle:
approx 130°
Speed adjustment:
YES (9 levels)
Time adjustment:
YES (9 levels)
Dimming:
YES (4 levels)
IP degree:
IP20
Connection method:
terminal blocks tightened with screws
screwdriver included
External dimensions:
150 x 85 x 22mm
Warranty:
2 years
Certificates:
CE, RoHS
PIR sensors react to motion at the top or bottom of the stairs; upon detecting motion, the lighting gradually turns on. This occurs from the first to the last step, from the side of the sensor that detected the motion.
Cascading stair lighting activation.
