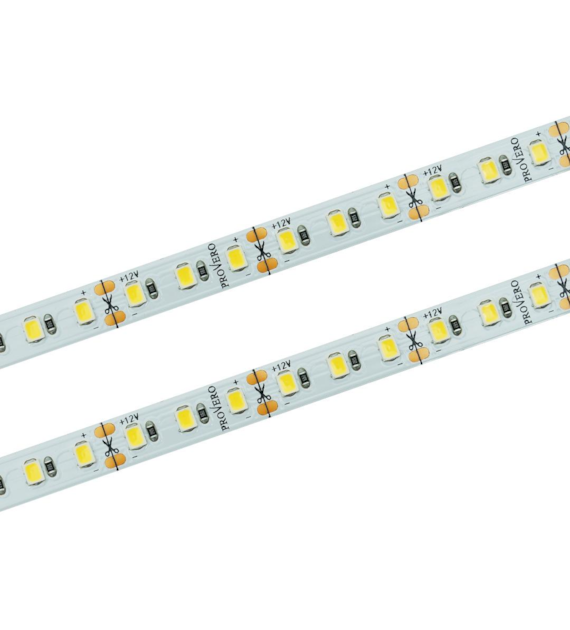

LED strip PRO 120 SMD 2835 IP33 4000K 14.4W, 3 years warranty, 5m roll

Categories: LED Strips \ SMD

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

ID-2226

Barcode

5901874274649

Basic unit

szt.

Light color:

Neutral

Possibility of cutting the tape:

25 mm

Number of diodes:

120

Protection class:

IP33

Energy efficiency class 2019/2015:

Tape width:

8 mm

Type of light source:

SMD 2835

Power supply:

Załączniki

Eprel

Instrukcja

Description

ProVero professional LED tape 14.4W/m IP 33

Power supply:

12V DC

Rated power of the 1m segment:

14.4W/m

Light color:

neutral white 4000K /NW/

Luminous flux:

1610 lm/m

Color rendering index:

Ra>85 ensures precise differentiation of illuminated colors.

Number of LEDs:

120LED/m

Degree of protection:

IP33

Type of light source:

SMD2835 - selected diodes

Light distribution angle:

120°

Tape width:

8mm double backing

Roll length:

Compatibility with dimmer:

YES

Lifespan:

35,000h

Warranty:

3 years

Certificates:

CE, RoHS

Possibility of cutting the tape:

every 25 mm

Double laminateof the tape /PCB 3oz/ allows forthicker copper tracks and better heat dissipation, which ensuresbetter energy efficiency and durability.

The used LEDsare selected during production(binding), ensuring that the color and brightness are consistent. To achieve uniform lighting, we recommend using tapes from the same roll in a specific room.

The supply voltage and design ensurelow voltage drops at the end of the tape, however, for long sectionsparallel power supply is recommended. Such installation will allow achievinguniformity of lighting along the entire length.

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which cannot, however, constitute the basis for any claims..
