Parameters:

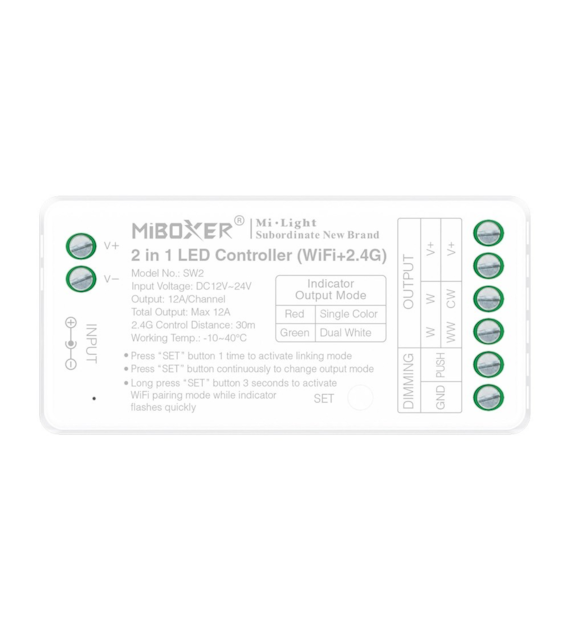

• Product name:SW2 2 in 1 Controller
• Model no.:SW2
• Input voltage:DC 12–24 V
• Output current:12 A / single channel
• Total output power:max. 12 A
• Control signal:radio frequency 2.4 GHz
• Control distance:30 m
• IP rating:IP20
• Dimming curve:logarithmic
• EMC standard:ETSI EN 301 489-1 version 2.2.3 (2019-11); ETSI EN 301 489-3 version 2.3.2 (2023-01)
• Safety standard (LVD):EN 61347-1:2015+A1:2021; EN 61347-2-11:2001+A1:2019
• Radio equipment (RED):ETSI EN 300 440 V2.2.1
• Certificates:CE, EMC, RED

Features:

• Wireless transmission and remote control technology 2.4 GHz with fast transmission, stable signal, and high resistance to interference
• Compatible with the app and remote control
• Brightness adjustment (dimming) and color temperature (CCT); wide application in commercial, hotel, and home lighting
• Built-in 18 dynamic modes with step and gradual changes (only for the 2.4 G remote)
• Automatic forwarding – the remote control signal is automatically transmitted to other controllers, providing virtually unlimited control range
• Automatic synchronization – the same dynamic mode is automatically synchronized, ensuring effects remain consistent
• DND function – commonly used in areas prone to power outages, helps save energy
• App control supportTUYA SMART(no need to use a 2.4 GHz gateway)
• Voice control support using systems such as Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu, and Xiaomi (no need to use a 2.4 GHz gateway)
