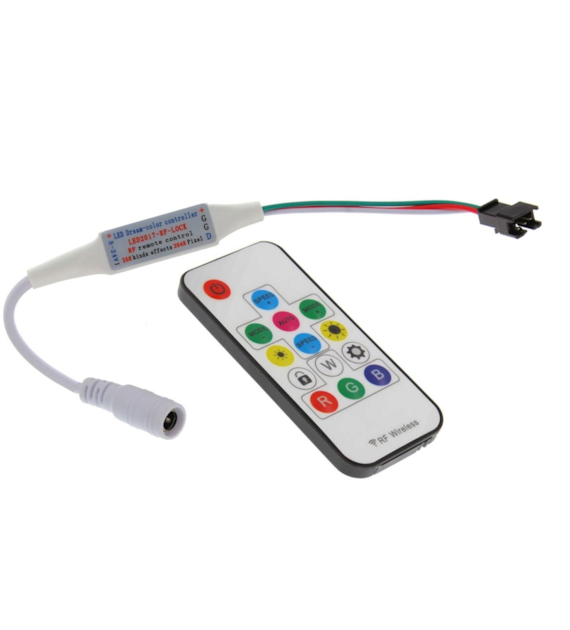

Magic RGB RF digital controller WS2811,WS2812

Categories: LED control \ Controllers for RGB/RGBW/CCT

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

ID-2089

Barcode

5901874279897

Basic unit

szt.

Digital LED strip:

TAK

Magic RGB RF digital controller WS2811,WS2812

Załączniki

Instrukcja

Ostrzeżenia bezpieczeństwa

Description

MAGIC RGB RF Controller WS2811 WS2812

Input voltage:

12-24V DC

Number of control points:

300 integrated circuits

Maximum current:

Maximum power:

72W at 12V; 144W at 24V

Battery power:

1x CR2032 (included)

Connection:

female DC connector and 3-pin JST connector

Compatible with integrated circuits:

WS2811 WS2812

Remote range:

15m

Effects mode:

358 types

Supports LED strips:

Digital RGB

Dimensions:

remote - 84 x 40 x 5mm
controller - 70 x 13 x 6mm

Degree of protection:

IP20

Operating temperature:

-20°~+50°C

Warranty:

2 years

Certificates:

CE, RoHS

With the RGB LED RF digital controller, it is possible to control the digital RGB LED strip. With this connection, we can achieve many effects such as running, swimming, or fleeing light.

A power supply with a voltage of 12-24V should be connected to the device at the DC connector side, and the LED strips should be connected at the 3-pin connector side. It is recommended to power the LED strip directly, rather than through the controller, when it exceeds the rated power of the controller.

Film
