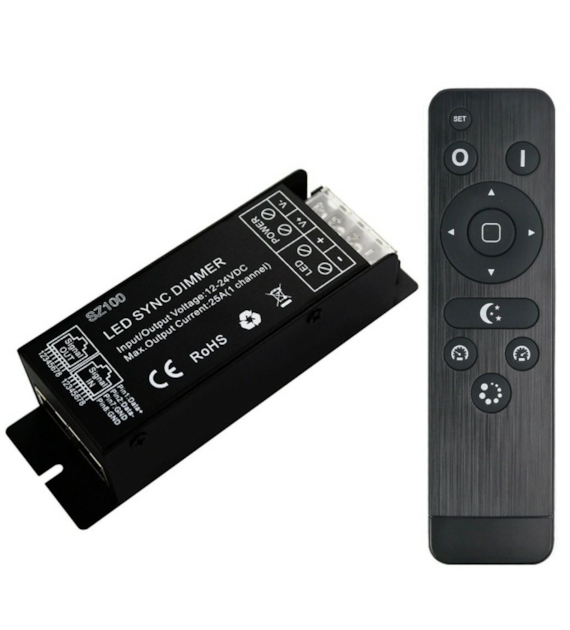

Mono tape receiver + remote
Application:
For mono tape installation
Control:
Buttons
Input/output voltage of the controller:
12V DC or 24V DC
Max output current of the controller:
25 A CMOS output transistor with open drain
Output power:
300W for 12V
Communication method from the remote to the receiver:
The regulator + remote set must be paired before operation according to the instructions. RF radio channel.
Brightness adjustment method:
PWM - pulse width modulation. Ability to synchronize multiple regulators via LAN twisted pair.
Radio communication range:
about 20 metersfrom the remote control in open terrain
Dimmer connections to the installation:
terminal strip for power supply and LED output, RJ45 LAN sockets for synchronization
Memory of previous settings:
YES
Built-in lighting programs:
fixed brightness levels: 10%, 30%, 70%, 100% in static mode.. Selected with dedicated buttons.
brightening / dimming in 10 levels with each press
ability to choose from 8 programmed dynamic transitions and adjust the response speed to buttons.
ability to adjust the speed of dynamic transitions.
delayed turn off after 30 seconds
night mode - brightness lighting from 1 to 10%. Setting the night mode level: -Press the button with the moon. -Hold SET for 10 seconds. -after this time, you can permanently assign the night mode level from 1%-10% by pressing the buttons on the right or left side of the moon. To finish, press SET again. After this operation, the night mode will shine at the level we set.
Operating temperature:
-20 to +60°C
Input/output connector:
Screw terminals +/- 12-24V DC
Set color:
black
Receiver dimensions:
127 x 41 x 32 mm
Remote dimensions:
149 x 30 x 20 mm
Remote power supply:
2 AAA batteries - NOT included in the set.
Warranty:
2 years
Certificates:
CE, RoHS
In case of the need to pair or swap devices, please follow the instructions below
Coding:
1. Hold the SET button on the remote and turn on the receiver to 12V power supply. The tape should blink once after a few seconds.
2. Then, within 5 seconds, press the MODE button marked with a square (the central button in the circle) three times. The tape should dim to 10-25%
Deleting the code:
1. With the receiver powered on, hold the SET button on the remote for a few seconds. The tape should blink.
2. Within 5 seconds of completing point 1, press the DELAY button (round at the very bottom) three times. The LED tape should dim to 10-25%.
