Symbol:
FUT096

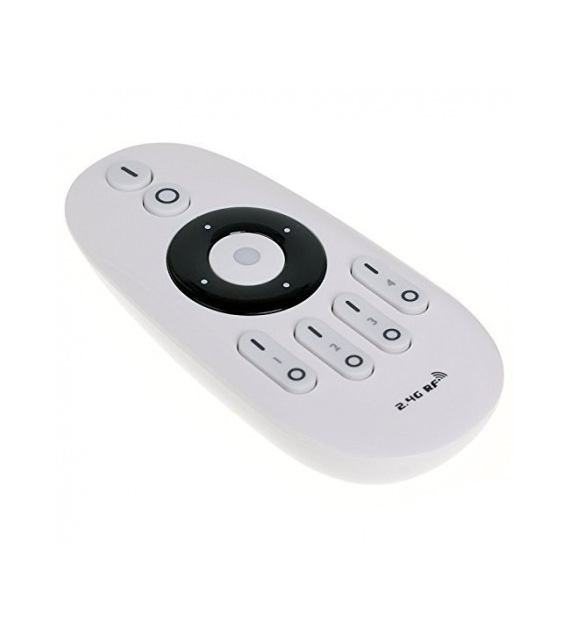

| FUT006 - remote control single-color LED lighting and with variable color temperatureCCT for 4 zones | ||
| Application: | Remote controlfor single-color LED installations and with variable color temperature | |
| Functions: | Controls the receiver - regulator by settingdimming (DIM) and changingcolor temperature (CCT) | |
| Number of supported zones: | Up to 4 zones, the ability to adjust all zones simultaneously. | |
| Communication method with the regulator: | 2.4GHz radio channel | |
| Radio communication range: | Up to 30 meters in open terrain | |
| Operating temperature: | min -20°C max +60°C | |
| Remote dimensions: | 110x52x20 mm | |
| Type of remote control buttons: | micro switches | |
| Remote power supply: | 2 AAA batteries /not included in the set/ | |
| Declarations: | RoHS, CE | |
| Warranty: | 24 months | |
| Devices compatible with Fut006: | FUT036 Receiver - LED regulator - MONO - 12-24V DC (10A) | |
| FUT035 Receiver - LED regulator - CCT - 12-24V DC (10A) | ||
| FUT009 LED bulb - GU10 CCT - 4W | ||
| FUT012 LED bulb - MR16 CCT - 4W | ||
| FUT017 LED bulb - E27 CCT - 6W | ||
| FUT019 LED bulb - E27 CCT - 9W | ||
| FUT060 Downlight fixture - CCT - 6W | ||
| FUT061 Downlight fixture - CCT - 12W | ||
| IBOX1 Wi-Fi Module - iBox1 | ||
| IBOX2 Wi-Fi Module - iBox2 | ||
Pairing the controller:
1. Select the zone to which the controller is to be assigned.
2. Disconnect the 12V DC power from the receiver.
3. Reconnect the 12V DC power to the receiver and within 3 seconds briefly press the selected zone on the remote control.
4. If pairing was successful, the light will blink 3 times.
