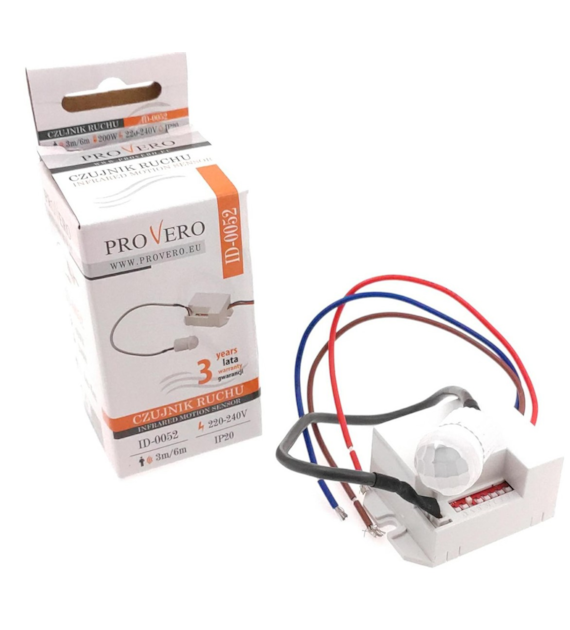

PIR motion sensor - infrared with mini sensor 220-240V AC
Approximate reaction distance:
3-6m at a temperature <24°C at a movement speed of 0.6-1.5 m/s
On state time:
adjustable - 5s, 30s, 1min, 3min, 5min, 8min
Maximum power of controlled lamps:
200W for LED and fluorescent lamps and 800W for incandescent
Surrounding lighting:
10lx / 2000lx
Viewing angle:
120 on the sensor axis and 360° in the sensor radius
Operating temperature:
between -20°C and +40°C
Mounting method:
ceiling mounting 2.2-4m or
wall mounting at a height of 1.8-2.5m
Power supply:
220-240V 50Hz
Dimensions:
Control unit dimensions 55x35x26mm
Sensor mounted in a 12mm hole.
Type of sensor:
PIR sensor connected via a detachable 20cm cable allows for convenient placement, e.g., in furniture
Declarations:
RoHS, CE
Warranty:
3 years
The device is designed for turning on and automatically turning off after a set time of LED lighting. It uses infrared emitted by the human body to operate - (Passive Infrared sensor). It can be used in furniture to control lighting functions.
