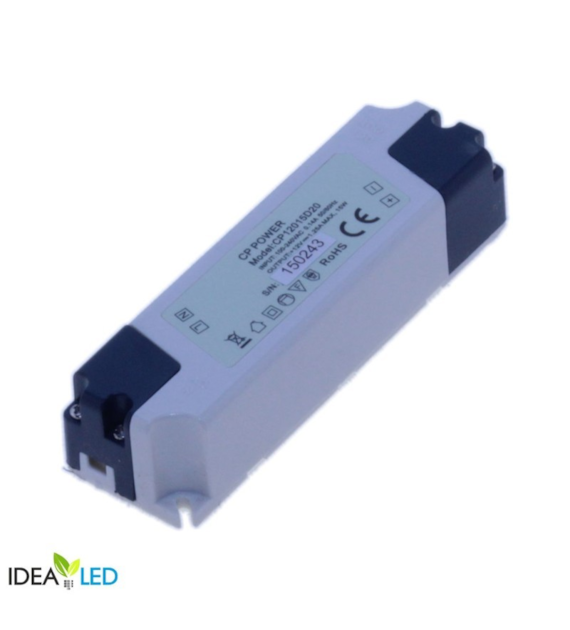

Mounting power supply CP 15W plastic 12V DC

Categories: Power supplies \ Furniture

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

CP12015D20

Basic unit

szt.

Protection class:

IP20

Power [W]:

Rated voltage [V]:

Power Range:

10.1W do 50W

Unit packaging width (cm)

3.5

Unit package height (cm)

2.7

Unit packaging depth (cm)

10.6

Mounting power supply CP 15W plastic 12V DC

Description

Power supply for powering LED strips 12V 15W PFC

AC mains voltage:

AC 110 -230V +/-15%

AC mains frequency:

50-60Hz

Stabilized DC output voltage:

12 V

Max continuous output power:

15W

Max output current:

1.25A

Operating temperature:

-30°C ÷ +40°C

Energy processing method:

PFC switching power supply

Protection :

overload (OCP), overvoltage (OVP), short-circuit (SCP), thermal (OTP)

IP rating:

IP20

Connection method:

terminal blocks tightened with screws
max cross-section of the cable 1.5mm²

External dimensions:

106x35x27mm

Certifications:

CE, RoHS

The power supply is intended for indoor use. The product is made ofhigh-quality componentswhich have been placed ina sturdy plastic housing. The power supply is designed to power LED lightingwith a voltage of 12Ve.g. LED strips, integrated fixtures, and bulbs. The PFC type converter optimizes reactive power consumption from the grid. The use of a transformer galvanically isolates the load from the power grid, which is essential for electrical safety. Cooling is achieved through free air flow. The modular design allowsfor easy and convenient installationon vertical and horizontal surfaces with two screws of max. diameter 3mm. The output voltage of 12V is safe for people.
