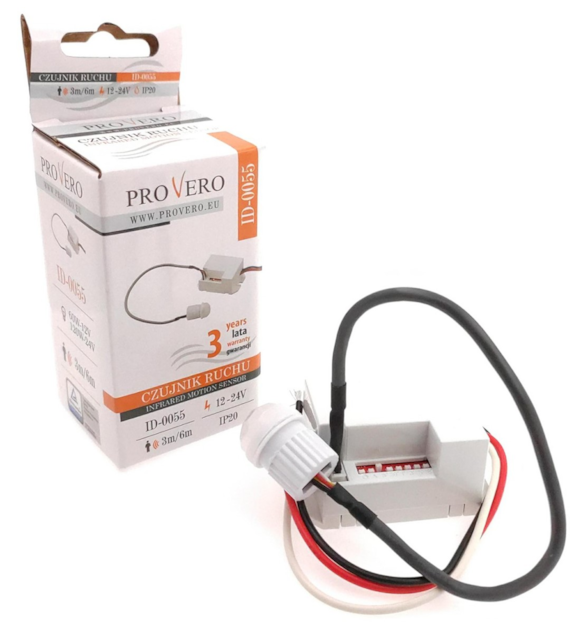

PIR motion sensor - infrared with mini 12-24V DC detector
Approximate reaction distance:
3-6m at a temperature <24°C at a movement speed of 0.6-1.5 m/s
On state time:
adjustable - 5s, 30s, 1min, 3min, 5min, 8min
Maximum power of controlled lamps:
60W for 12V and 120W for 24V
Surrounding lighting:
10lx / 2000lx
Viewing angle:
120° along the sensor axis and 360° in the sensor radius
Operating temperature:
between -20°C and +40°C
Mounting method:
ceiling mounting 2.2-4m or
wall mounting at a height of 1.8-2.5m
Power supply:
12 - 24V DC / voltage from the LED power supply/
Dimensions:
Control unit dimensions 55x35x26mm
Sensor mounted in a 12mm hole.
Type of sensor:
PIR sensor connected via a detachable 20cm cable allows for convenient placement, e.g., in furniture
Declarations:
RoHS, CE
Warranty:
3 years
The device is intended forfor turning on and automatic turning off after a set lighting time. It uses infrared emitted by the human body to operate - (Passive Infrared Sensor). It can be used in furniture to control lighting functions.
