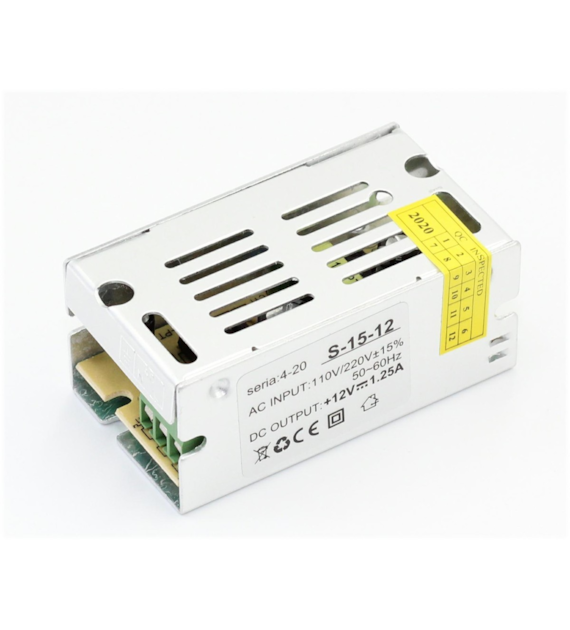

Power supply for powering LED strips 12V 15W PFC
AC mains voltage:
AC 220 -240V
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
12 V
Maximum continuous output power:
15W
Maximum output current:
1.25A
Operating temperature:
-25°C to +70°C
Energy processing method:
PFC switch-mode power supply
Overload protection:
YES
Surge protection:
YES
Thermal protection:
YES
IP degree:
IP20
Connection method:
terminal blocks tightened with screws
max wire cross-section 1.5mm2
External dimensions:
70 x 40 x 30mm
Warranty:
2 years
Certificates:
CE, RoHS
The power supply is intended for indoor use. The product is made ofhigh-quality componentsthat have been placed ina solid metal housing. The power supply is designed to power LED lightingwith a voltage of 12Ve.g. LED strips, integrated fixtures, and bulbs. The PFC type converteroptimizes the reactive power consumption from the grid. The use of a transformer galvanically isolates the load from the power grid, which is essential for electrical safety. Cooling occurs through free airflow throughthe perforated housing. The modular design allowson vertical and horizontal surfaces with two screws of max. diameter 3mm. The output voltage of 12V is safe for people.for vertical and horizontal surfaces with two screws of max. diameter 4mm. The output voltage of 12V is safe for people.
