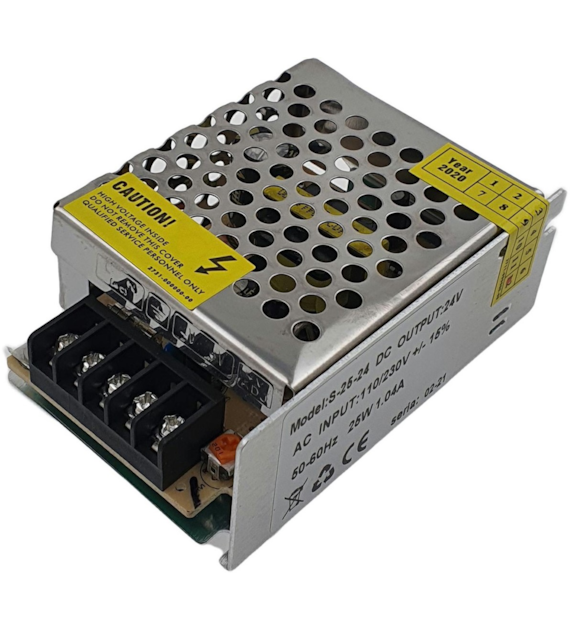

Power supply for powering LED strips24V25W PFC
AC mains voltage:
AC 110 -230V +/-15%
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
requires the use of
Maximum continuous output power:
25W
Maximum output current:
1A
Operating temperature:
-25°C to +70°C
Energy processing method:
PFC switch-mode power supply
Connection method:
terminal blocks tightened with screws
max wire cross-section 1.5mm2
External dimensions:
85 x 58 x 33mm
The power supply is intended for indoor use. The product is made ofhigh-quality componentsthat have been placed ina solid metal housing. The power supply is designed to power LED lightingwith a voltage of 24Ve.g. LED strips, integrated fixtures, and bulbs. The PFC converteroptimizes the reactive power consumption from the grid. The use of a transformer galvanically isolates the load from the power grid, which is essential for electrical safety. Cooling is achieved through free airflow throughthe perforated housing. The modular design allowson vertical and horizontal surfaces with two screws of max. diameter 3mm. The output voltage of 12V is safe for people.for mounting on both vertical and horizontal surfaces with two screws of max. diameter 4mm. The output voltage of 24V is safe for people.
