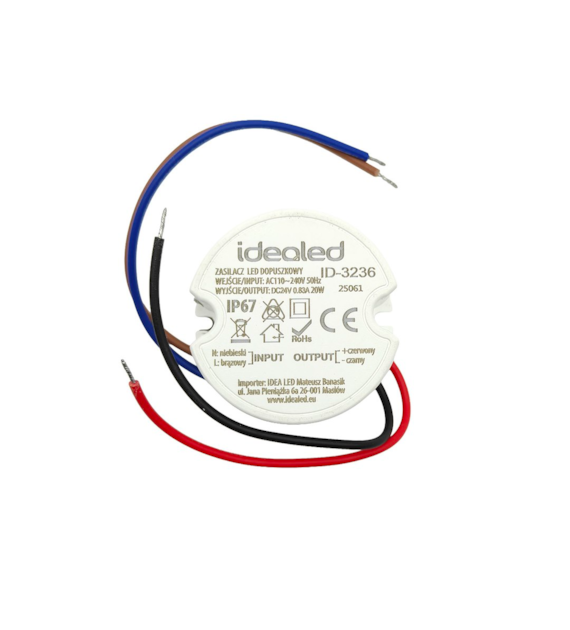

Power supply set for junction box 0,83A 20W waterproof 24V DC

Categories: Power supplies \ Waterproof

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

ID-3236

Barcode

5906076213953

Basic unit

szt.

Protection class:

IP67

Power [W]:

Rated voltage [V]:

Power Range:

10.1W do 50W

Weight

0.05 kg

Unit packaging width (cm)

5.3

Unit package height (cm)

2.5

Unit packaging depth (cm)

Quantity in collective packaging

200

Power supply set for junction box 0,83A 20W waterproof 24V DC

Załączniki

Instrukcja

Ostrzeżenia bezpieczeństwa

Description

LED power supply for box fi60 24V 20W IP67

AC mains voltage:

AC 110 -240V

AC mains frequency:

50Hz

Stabilized output voltage DC:

24V

Maximum continuous output power:

20W

Maximum output current:

0.83A

Operating temperature:

-20°C÷75°C

Energy processing method:

switching power supply

Protections:

overload (OCP),
overvoltage (OVP),
short circuit (SCP),
thermal (OTP)

Connection method:

released wires approximately 10 cm long

IP degree:

IP67

Enclosure type:

plastic enclosure

External dimensions:

diameter 50mm x 22mm

Warranty:

2 years

Certificates:

CE, RoHS

The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage surges.This is very important forprotecting sensitive LED diodesand other components. The output voltage of 24V is safe for humans.

Due tothe round shapeinstallation inside the electrical boxis possible.With the increased degree of protection, it will perform well in humid places and exposed to rain, as well as in places exposed to dust. W związku z podwyższonym stopniem ochrony dobrze sprawdzi się w miejscach wilgotnych oraz narażonym na deszcz, jak również w miejscach narażonych na pył.
