Symbol:
10-0031-10
EAN:
5901854771410

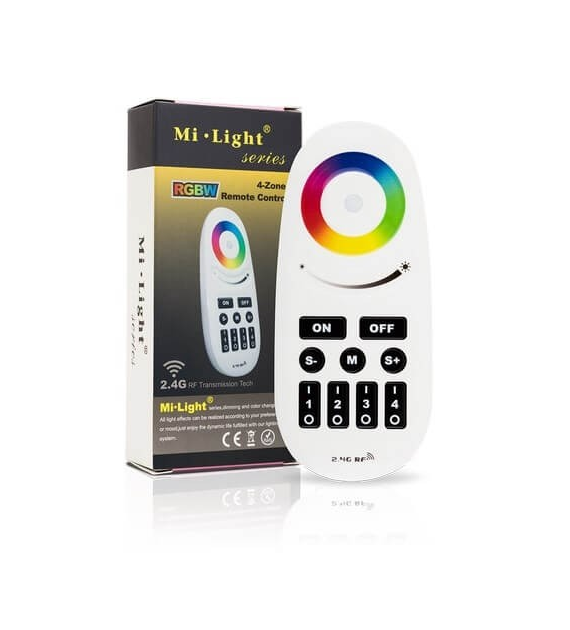

| FUT095 - remote for RGBW LED lighting for 4 zones - touch and with buttons | ||||
| Application: | Remotefor multicolor LED installations RGBand RGB+W for controlling different zonesof lighting. | |||
| Functions: | Dimming and brighteningof connected LED lighting | |||
| Activecolor changefrom the RGB color palette | ||||
| Possibilityto turn on white color(when using RGB+W strip) | ||||
| Controleach zone separately | ||||
| Functionto turn on/off all zones simultaneously | ||||
| Active programsdynamic for use (change of mode/speed) | ||||
| Number of supported zones: | Up to 4 zones, possibility to adjust all zones simultaneously. | |||
| Communication method with the controller: | Radio channel 2.4GHz | |||
| Radio communication range: | Up to30 meters in open terrain | |||
| Operating temperature: | min -20°C max +60°C | |||
| Remote dimensions: | 52.5mm x 21mm x 120mm | |||
| Control method: | Micro switches on/off, for setting zones and programs. Touch sensors for smooth adjustments of color and brightness. | |||
| Remote power supply: | 2 AAA batteries /not included in the set/ | |||
| Declarations: | RoHS, CE | |||
| Warranty: | 24 months | |||
| The remote works with the RGBW lighting receiver - controller and optionally with other lighting elements described in the table below. | ||||
| FUT037 LED Receiver - RGB - 12-24VDC (10A) | ||||
| FUT038 LED Receiver - RGB+W - 12-24VDC (10A) | ||||
| FUT080 LED Cup - RGB+W - Wineglass Type | ||||
| FUT080A LED Cup - RGB+W - Ring Type | ||||
| FUT067 Downlight Fixture - RGB+W - 12W | ||||
| FUTT01 LED Floodlight - RGB+W - 35W | ||||
| FUT066 LED Bulb - MR16 RGB+W - 4W | ||||
| FUT010 LED Bulb - GU10 RGB+W - 4W | ||||
| FUT013 LED Bulb - E14 RGB+W - 5W | ||||
| FUT014 LED Bulb - E27 RGB+W - 6W | ||||
| FUT016 LED Bulb - E27 RGB+W - 9W | ||||
| FUT102 LED Bulb - E27 JDR RGB+W - 9W | ||||
| IBOX1 Wi-Fi Module | ||||
| IBOX2 Wi-Fi Module | ||||
| Pairing the controller: | ||||
| 1. Select the zone to which the controller should be assigned. | ||||
| 2.Disconnect the 12V DC power from the receiver. | ||||
| 3.Reconnect the 12V DC power to the receiver and within 3 seconds briefly press the selected zone on the remote. | ||||
| 4.If the pairing was successful, the light will blink 3 times. | ||||
