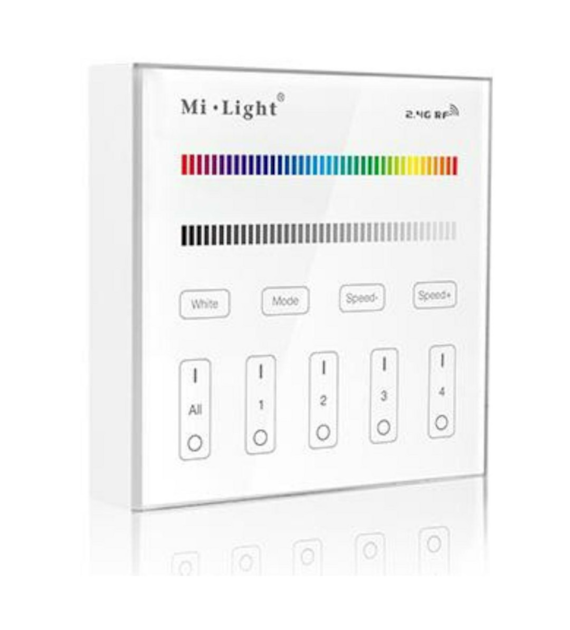

| B4 - wall panel - remote for white CCT LED lighting with temperature and RGBW adjustment in 4 zones. Touch | ||
| Application: | Remotefor white LED installations with color temperature adjustment from cold to warm and in multicolor RGBand RGB+W. Dfor controlling 4 different zonesof lighting. Designed to be stuck on the wall. Powered independently of external sources. | |
| Functions: | # Dimming and brightening of connected LED lighting | |
| # Active color change from the RGBW color palette and white light temperature. | ||
| # Ability to turn on white color (when using RGB+W strip) | ||
| # Control of each zone separately | ||
| # Function to turn on/off all zones simultaneously | ||
| Number of supported zones: | Up to 4 zones. | |
| return to settings after power change: | no | |
| Communication method with the controller: | 2.4GHz radio channel | |
| modulation type: | GFSK | |
| Radio communication range: | Up to 30 meters in open terrain | |
| Operating temperature: | min -20°C max+ 60°C | |
| main construction features: | Glass front, white housing in a shape similar to light switches. Stickable on the wall independently of the 230V network. | |
| Remote dimensions: | 86mm x 86mm x 21mm | |
| Control method: | Touch sensorsfor switching and for smooth adjustments of color and brightness. | |
| Remote power supply: | 2 AAA batteries -negligible power consumption in standby mode 10uA. /not included in the set/ | |
| Declarations: | RoHs, CE. | |
| Warranty: | 24 months | |
| The remote works with the receiver - RGBW lighting controller and optionallywith other lighting elements described in the table below. | ||
| FUT039 | LED receiver - RGB+CCT - 5x6A (10A) | |
| FUT015 | LED bulb - E27 RGB+CCT - 8W | |
| FUT103 | LED bulb - GU10 RGB+CCT - 4W | |
| FUT104 | LED bulb - MR16 RGB+CCT - 4W | |
| FUT068 | Downlight fixture - RGB+CCT - 6W | |
| FUT066 | Downlight fixture - RGB+CCT - 12 | |
| IBOX1 | Wi-Fi module | |
| IBOX2 | Wi-Fi module | |
