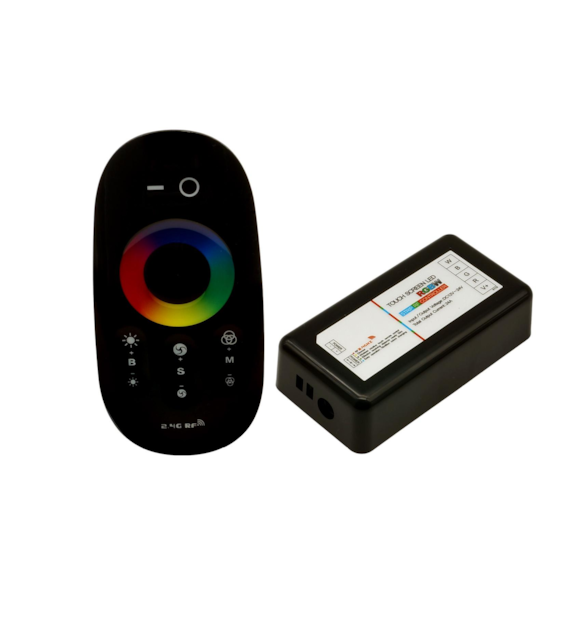

RGBW strip controller + remoteBLACK
Application:
For installation of multicolor RGBW strips
Control:
Buttons + dial for changing colors
Input/output voltage of the controller:
12V DC or 24V DC
Max output current of the controller:
6Aper channel
Output power:
total channels:288W for 12V or 576W for 24V
Number of outputs of the controller:
4 channels R,G,B,W and common anode (+)
Communication method with the remote:
Controller + remote set factory paired. Radio channel 2.4GHz
Radio communication range:
about 20 metersfrom the remote control in open space
Output signal of the controller:
PWM - pulse width modulation. 256 brightness levels for each channel.
Memory of previous settings:
YES
Built-in lighting programs:
14
Operating temperature:
-20 to +55°C
Input connector (power):
Screw terminals +/- 12-24V DC or DC socket 5.5x2.1mm
Output connector (signal):
Screw terminals for wires: (R)(G)(B)(W)(+12V)
Receiver dimensions:
86 x 45 x 23 mm
Remote dimensions:
110 x 53 x 20 mm
Remote power supply:
2 AAA batteries/not included in the set/
SetID-2077-Cisan elegant complete and pairedcontroller with a remote designedfor controlling multicolor LED lighting. It allows changing the color and brightness intensity using an external remote. The controller is powered by a 12V or 24V LED strip power supply and connected to the LED strip via a five-wire cable bundle.
