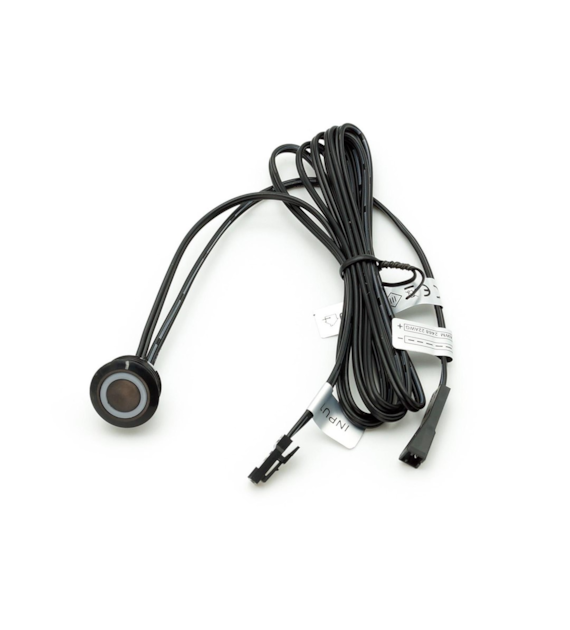

Black touch switch with dimmer
Supply voltage:
12/24 V DC /direct current e.g. from the power supply/
Output voltage:
12/24 V DC JST mini cable
Maximum power of controlled lamps:
60W for 12V, 100W for 24V
Maximum current output:
5A (for 12V), 4A (for 24V)
Color:
Black
State after power failure:
Off
Functions:
- on/off
- brightening/dimming
Usage:
Indoor
Operating temperature:
between -10°C and + 40°C
Main design features:
Device dimensions 19x11 mm
Wires 15cm/150cm (in/out)
Mounting hole:
17mm
Degree of protection:
IP 20
Safety class:
Class III
Declarations:
RoHS, CE
Warranty:
2 years
Principle of operation:
The touch switch with dimmer turns the electrical circuit on and off when touched and dims and brightens when the button is held.
Touch switch for LED strips for installation e.g. in furniture boards.
