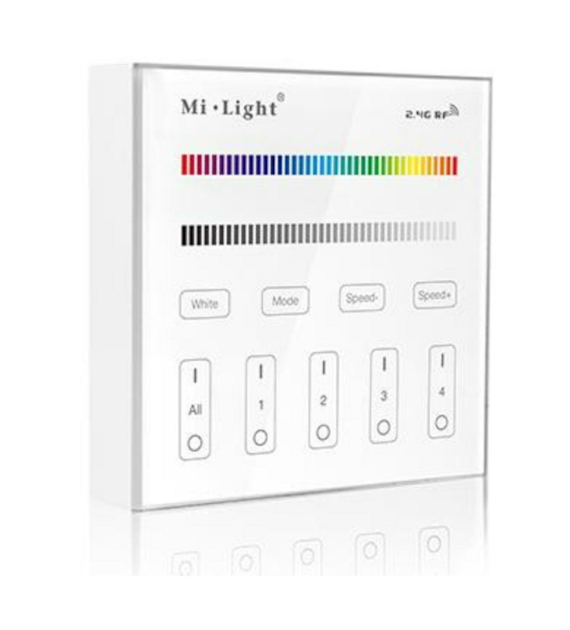

| B3 - wall panel - remote for RGBW LED lighting for 4 zones. Touch | ||
| Application: | Remotefor LED installations multicolored RGBand RGB+W for controlling 4 dífferent zonesof lighting. Designed forsticking to the wall. Powered independently of external sources. | |
| Functions: | # Dimming and brightening of connected LED lighting | |
| # Active color changing from the RGBW color palette | ||
| # Ability to turn on white color (when using RGB+W tape) | ||
| # Control of each zone separately | ||
| # Function to turn on/off all zones simultaneously | ||
| modulation type: | GFSK | |
| return to settings after power change | no | |
| Built-in programs: | Active dynamic programs for use (mode/speed change) | |
| Number of supported zones: | Up to 4 zones, ability to adjust all zones simultaneously. | |
| Communication method with the controller: | 2.4GHz radio channel | |
| Radio communication range: | Up to 30 meters in open terrain | |
| Operating temperature: | min -20°C max +60°C | |
| main construction features: | Glass front, white housing in a shape similar to light switches. Stickable to the wallindependently of the 230V network. | |
| Remote dimensions: | 86mm x 86mm x 21mm | |
| Control method: | Touch sensorsfor switching and for smooth adjustments of color and brightness. | |
| Remote power supply: | 2 AAA batteries-negligible power consumption in standby mode 10uA. /not included in the set/ | |
| Declarations: | RoHS, CE | |
| Warranty: | 24 months | |
| The remote must work with the receiver - RGB lighting controllerorRGBW and optionallywith other lighting elements described in the table below. | ||
| FUT037 | LED Receiver - RGB - 12-24VDC (10A) | |
| FUT038 | LED Receiver - RGB+W - 12-24VDC (10A) | |
| FUT080 | LED Glass - RGB+W - Wineglass Type | |
| FUT080A | LED Glass - RGB+W - Ring Type | |
| FUT067 | Downlight Fixture - RGB+W - 12W | |
| FUTT01 | LED Floodlight - RGB+W - 35W | |
| FUT066 | LED Bulb - MR16 RGB+W - 4W | |
| FUT010 | LED Bulb - GU10 RGB+W - 4W | |
| FUT013 | LED Bulb - E14 RGB+W - 5W | |
| FUT014 | LED Bulb - E27 RGB+W - 6W | |
| FUT016 | LED Bulb - E27 RGB+W - 9W | |
| FUT102 | LED Bulb - E27 JDR RGB+W - 9W | |
| IBOX1 | Wi-Fi Module | |
| IBOX2 | Wi-Fi Module | |
