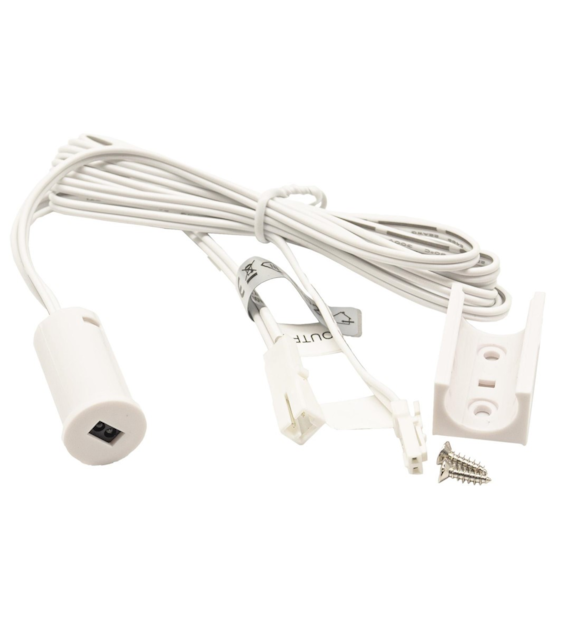

White touchless switch for hand waving
Supply voltage:
12-24 V DC /constant voltage e.g. from the power supply/
Output voltage:
12-24 V DC JST mini cable
Maximum power of controlled lamps:
60W for 12V, 100W for 24V
Maximum current output:
5A (for 12V), 4A (for 24V)
Color:
White
State after power loss:
Off
Motion detection range:
up to 5-8 cm
Usage:
Indoor
Operating temperature:
between -10°C and + 40°C
Main design features:
Device dimensions 30x16x16 mm
Wires 15cm/150cm (in/out)
Degree of protection:
IP 20
Safety class:
Class III
Declarations:
RoHs, CE
Warranty:
2 years
Operating principle:
The touchless switch activates the electrical circuit when motion is detected, e.g. waving a hand from a distance of up to 8 cm.
The device is used for lighting mirrors, cabinets, drawers, etc.
