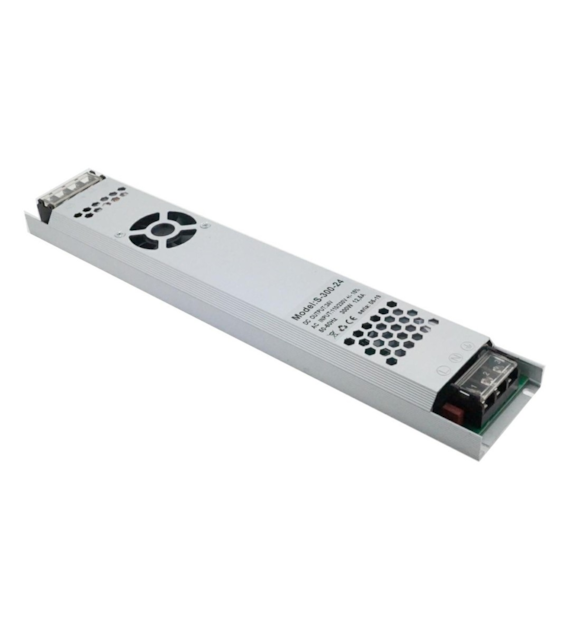

Power supply for powering ultra-flat LED strips24V300W with reactive power compensation
AC mains voltage:
AC 110 -230V +/-15%
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
requires the use of
Maximum continuous output power:
300W
Maximum output current:
12.5A
Operating temperature:
-25°C to 70°C
Energy processing method:
PFC /Power Factor Correction/ switching power supply
Network side protections:
multiple polymer fuse
Protection from the load side:
overcurrent limiter stopping the converter
Connection method:
terminal blocks tightened with screws with covers
on the AC side: L, N, neutral
on the 24V DC side double terminals + and -
External dimensions:
308 x 53 x 23mm
The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage spikes.This is very important forprotecting sensitive LED diodesand other components.The PFC (Power Factor Correction) converter optimizes the reactive power consumption from the supply.The use of a transformer galvanically isolates the load from the power grid, which is fundamentalimportant for electrical safetyfor users. The output voltage of 24V is safe for people.
The aluminum profile serving as a radiator with perforation ensures air cooling. TheULTRA SLIM housing has a height of up to 25 mm.Installation should ensureair exchange for cooling the power supply.Possibility of mounting on 4 screwswith a max. diameter of 3mm (screws not included).
