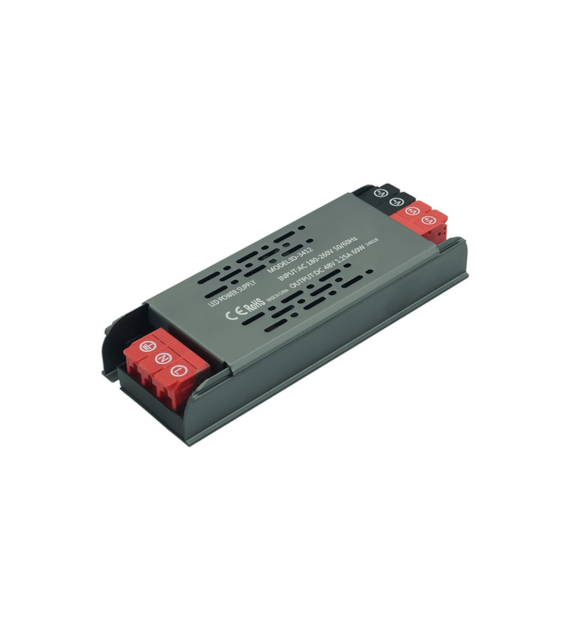

PROVERO ULTRA SLIM Power Supply48VDC 60W
AC mains voltage:
AC 170-260V
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
48 V
Maximum continuous output power:
60W
Maximum output current:
1.25A
Operating temperature:
max. 45°C
Energy processing method:
switching power supply
Connection method:
screwless connection
External dimensions:
136 x 50 x 24mm
Compatibility with dimmer:
NO
Power SupplyPROVERO ULTRA SLIMdesigned for indoor use. The product is made ofhigh-quality componentsthat have been placed ina solid aluminum housingin graphite color. The power supply is intended for powering LED lightingwith a voltage of 48VLED strips. Cooling occurs through free airflow throughthe perforated housing. The modular design allowson vertical and horizontal surfaces with two screws of max. diameter 3mm. The output voltage of 12V is safe for people.to both vertical and horizontal surfaces.
The warranty does not cover mechanical damage.
We change the jumpers with the power supply turned off.
We gently slide the switch jumpers.
Screwless connections tilt 45oto achieve the first slight resistance and we stop the movement, greater tilting will cause the lock to break and result in mechanical damage and loss of warranty.
