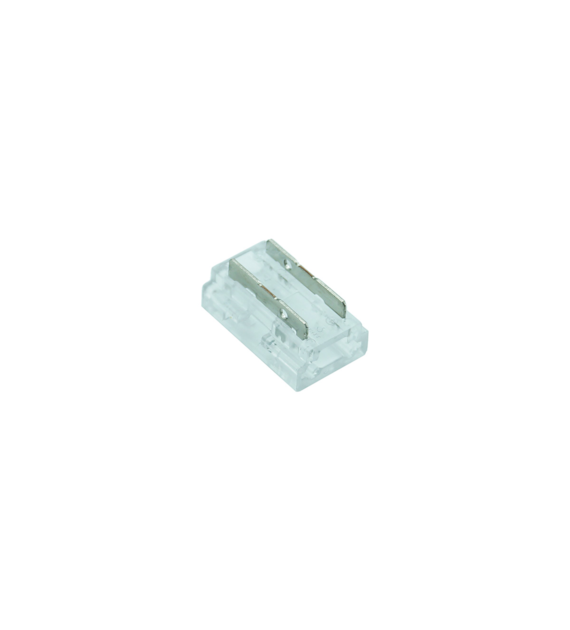

Universal connector SMD/COB 8mm 8-in-1 mono

Categories: LED Strips \ Connectors for LED strips

Prices

Ceny i stany dostępne po zalogowaniu

Data

Symbol

ID-0171

Barcode

5906076212178

Basic unit

szt.

Tape width:

8 mm

Connectors for LED:

mono

Załączniki

Instrukcja LTX

Ostrzeżenia bezpieczeństwa

Description

Universal connector COB SMD 8mm 8in1

Rated operating voltage:

up to 24V

Number of connected paths:

Connected devices:

tape with wire; tape with tape

Connection direction:

straight, angled, "T", "X"

Tape width:

8mm

Material:

polypropylene

Dimension:

16x10x6 mm

Closure method:

clamp

Application:

connector for LED strips. Allows for connection without soldering technology.

IP degree:

IP20

Safety declarations:

CE; RoHS

Ease of installation of the universal COB 8mm connector.

Cut the LED COB/SMD tape at the designated point

Remove the protective layer of glue from the area where the connector will be

Insert pieces of tape (or an additional wire) into the selected holes, so that the copper contacts of the tape are under the clamps of the connector.

After positioning all the tapes (or an additional wire) in the connector, we clamp the metal connectors, e.g., with pliers.
