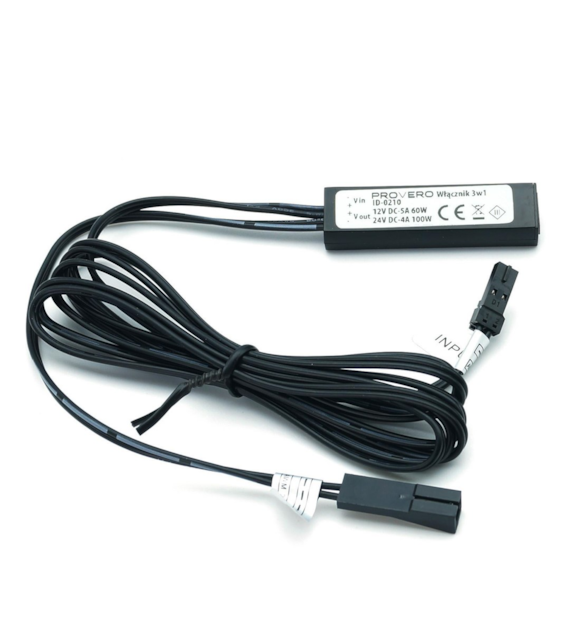

Universal switch 3in1 black
Supply voltage:
12-24 V DC /constant voltage e.g. from the power supply/
Output voltage:
12-24 V DC JST mini cable
Maximum power of controlled lamps:
60W for 12V, 100W for 24V
Maximum current at the output:
5A (for 12V), 4A (for 24V)
Color:
Black
State after power loss:
Off
Operating range:
50-80 mm
Usage:
Indoor
Operating temperature:
between -10°C and + 40°C
Main design features:
Device dimensions 48x13.5x7 mm
Wires 1500mm/200mm (in/out)
Degree of protection:
IP 20
Safety class:
Class III
Declarations:
RoHS, CE
Warranty:
2 years
Operating principle depending on the switch setting:
1. The sensor switch function for doors/drawers activates the electrical circuit when, for example, the wardrobe door is opened and turns it off after the door is closed.
2. The touchless switch function with a dimmer turns the electrical circuit on and off when approaching and dims and brightens when we hold our hand in front of the sensor.
3. The touchless switch function activates the electrical circuit when a hand approaches.
Notes:
- we change the switch functions before turning on the power,
- we slide the switch with a thin object, e.g., a needle
