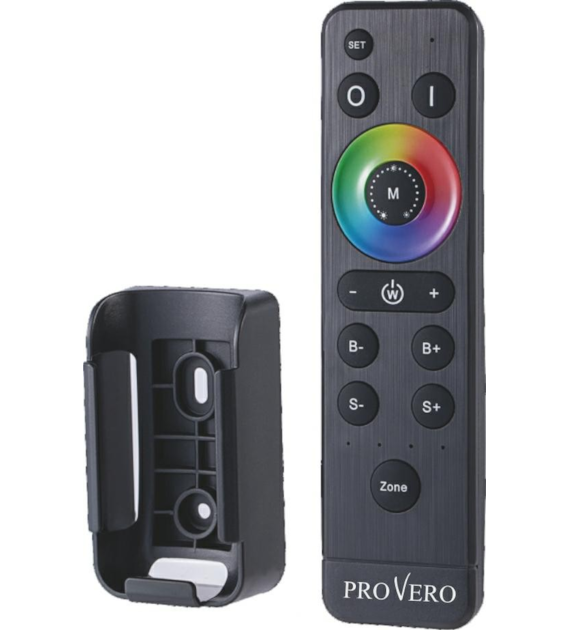

Pilot RGB/RGBW 4-zone VOLTA PROVERO
Remote power supply:
2 AAA batteries - NOT included in the set.
Remote control buttons and housing:
Touch regulator, micro switches.
Housing made of durable material with a brushed aluminum texture in black color.
Includes a mounting bracket with dowels and screws.
Method of communication with the receiver:
RF 2.4GHz radio channel. The regulator + remote set must be paired according to the instructions before use.
Radio communication range:
about 20 metersfrom the remote control in open terrain
Memory of previous settings:
YES
Operating temperature:
From -20°C to + 45°C
Remote dimensions:
150mm x 40mm x 20mm
RGB/RGBW 4-zone remote Voltaallows for control of stripsRGB,RGBW,CCTandRGB+CCT.It has the ability to control up to four separate zones, to which additional light points can also be programmed.
RGB/RGBW Volta remotewirelessly in dynamic and static synchronization mode, works with receivers:
Remote functions:
- single color - dimming
- CW+WW - adjustment of white light temperature from warm to cool
- RGB - color selection from three primary colors
- RGBW - color selection from 3 primary colors and cool white
- 5 fixed brightness levels: 10%, 30%, 50%, 70%, 100% in static mode. Selected with dedicated buttons
- brightening / dimming in 1024 levels with each press, also in fast mode
- ability to select programmed dynamic transitions and adjust the speed of response to buttons
- ability to adjust the speed of dynamic transitions
- night mode - lighting with brightness from 1 to 10%. It is possible to set the night mode
The VOLTA system allows synchronization with controllers from other lighting groups. Wireless-sync-controlled.
/VOLTA system - graphic/
The set is NOT factory paired. Please follow the pairing instructions presented below.
Universal receiver VOLTA 4*4AID-2512
Universal receiver VOLTA 4*6AID-2510
VOLTA RGB+CCT 5*4A receiverID-2511 - skip step 1
