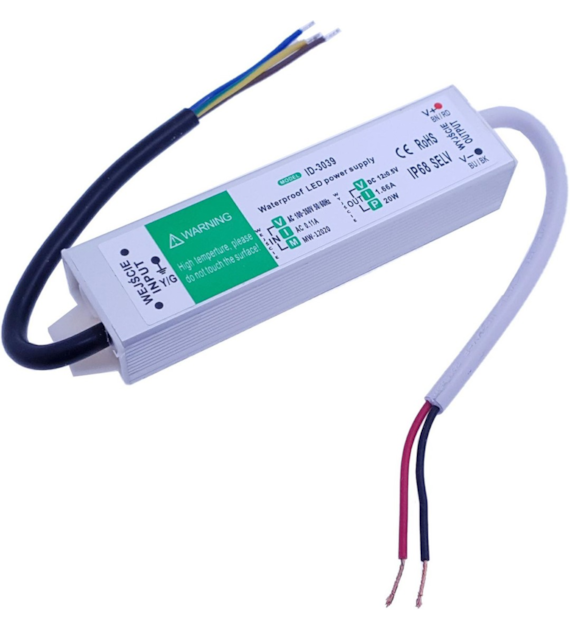

Slim power supply for powering LED strips 12V 20W IP67
AC mains voltage:
AC 100 -250V
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
12 V
Maximum continuous output power:
20W
Maximum output current:
1.67A
Operating temperature:
-30°C÷75°C
Protection from the load side:
Switching power supply. Energy efficiency 89%
Protections:
overload (OCP),
overvoltage (OVP),
short-circuit (SCP),
thermal (OTP)
Connection method:
mounting wires approximately 20 cm long
Housing type:
Housing made of aluminum profile, filled with flexible sealing material.
External dimensions:
130 x 30 x 20mm
The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage spikes.This is very important forprotecting sensitive LED diodesand other components.
The use of the transformer galvanically isolates the load from the power grid, which is fundamentallyimportant for electrical safetyusers. The output voltage of 12V is safe for people.
Due to the increased degree of protection (against the effects of temporary immersion in water and dust-tight protection), it will perform well in humid places and those exposed to rain, as well as in areas exposed to dust.
