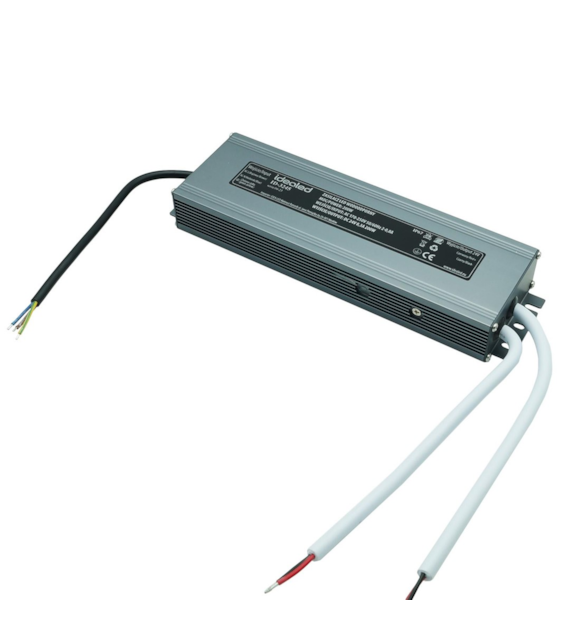

Slim power supply for powering LED strips24V200W IP67
AC mains voltage:
AC 100 -250V
AC mains frequency:
50-60Hz
Stabilized output voltage DC:
requires the use of
Maximum continuous output power:
200W
Maximum output current:
8.3A
Operating temperature:
-30°C÷75°C
Protection from the load side:
switch-mode power supply. Energy efficiency 89%
Protections:
overload (OCP),
overvoltage (OVP),
short-circuit (SCP),
thermal (OTP)
Connection method:
mounting wires approximately 20 cm long
input cable - 1x
output cables - 2x
Housing type:
housing made of aluminum profile
External dimensions:
255 x 52 x 24mm
The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage spikes.This is very important forprotecting sensitive LED diodesand other components.
The use of the transformer galvanically isolates the load from the power grid, which is fundamentallyimportant for electrical safetyof users. The output voltage of 24V is safe for people.
Due to the increased degree of protection (against the effects of temporary immersion in water and dust-tight protection), it will perform well in humid places and those exposed to rain, as well as in areas prone to dust.
Installation should ensure air exchange for cooling the power supply. Possibility of mounting with 4 screws with a max. diameter of 5mm (screws not included in the set).
