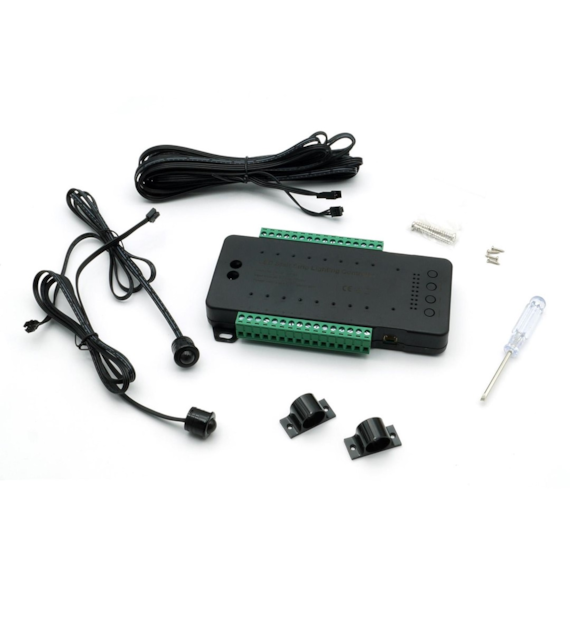

LED PIR Stair Controller 16 Steps Black
Voltage:
12V -24V DC
Power:
240W (15W per channel)
Number of channels(steps):
16
Color:
black
Operating temperature:
max. 45°C
Motion sensor:
YES (2 pcs on 80cm wire + 500cm extension)
Motion sensor range:
1.5-2m
Wide motion detection angle:
approx. 130°
Speed adjustment:
YES (9 levels)
Time adjustment:
YES (9 levels)
Dimming:
YES (4 levels)
IP degree:
IP20
Connection method:
terminal blocks tightened with screws
screwdriver included
External dimensions:
150 x 85 x 22mm
Warranty:
2 years
Certificates:
CE, RoHS
PIR sensors react to motion at the top or bottom of the stairs; upon detecting motion, the lighting gradually turns on. It occurs from the first to the last step, from the side of the sensor that detected the motion.
Cascading stair lighting activation.
