RGB strip controller + remoteBLACK
Application:
For installation of multicolor RGB strips
Control:
Buttons + dial for changing colors
Input/output voltage of the controller:
12V DC or 24V DC
Max output current of the controller:
6Aper channel
Output power:
total of channels:216W for 12V or 432W for 24V
Number of outputs of the controller:
3 channels R,G,B and common anode (+)
Communication method with the remote:
Set controller + remote factory paired. Radio channel 2.4GHz
Radio communication range:
about 20 metersfrom the remote control in open terrain
Output signal of the controller:
PWM - pulse width modulation. 256 levels of brightness for each channel.
Memory of previous settings:
YES
Built-in lighting programs:
20
Operating temperature:
-20 to +55°C
Input connector (power supply):
Screw terminals +/- 12-24V DC or DC socket 5.5x2.1mm
Output connector (signal):
Screw terminals for wires: (R)(G)(B)(+12V)
Receiver dimensions:
86 x 45 x 23 mm
Remote dimensions:
110 x 53 x 20 mm
Remote power supply:
2 AAA batteries/not included in the set/

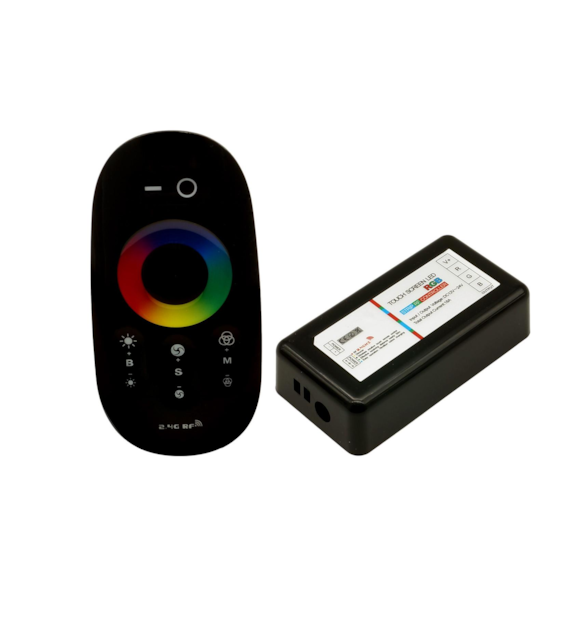

SetID-2076-Cisan elegant complete and pairedcontroller with a remote designedfor controlling multicolor LED lighting. It allows changing the color and brightness intensity using an external remote. The controller is powered by a 12V or 24V LED strip power supply and connected to the LED strip via a four-wire cable bundle.
