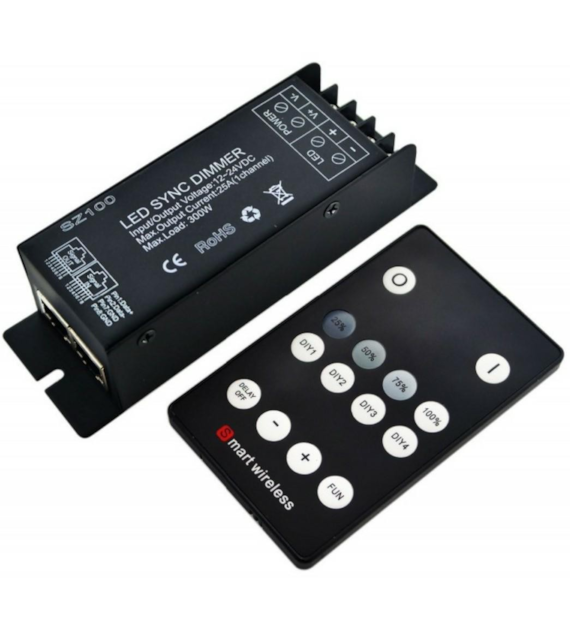

Mono tape receiver + remote
Application:
For mono tape installation
Control:
Buttons
Input/output voltage of the controller:
12V DC or 24V DC
Max output current of the controller:
25 A CMOS output transistor with open drain
Output power:
300W for 12V
Communication method from the remote to the receiver:
The regulator + remote set must be paired before operation according to the instructions. RF radio channel.
Brightness adjustment method:
PWM - pulse width modulation. Ability to synchronize multiple regulators via LAN twisted pair.
Radio communication range:
about 20 metersfrom the remote control in open terrain
Dimmer connections to the installation:
terminal strip for power supply and LED output, RJ45 LAN sockets for synchronization
Memory of previous settings:
YES
Built-in lighting programs:
set brightness levels: 25%, 50%, 75%, 100% in static mode. Selected by dedicated buttons.
brightening / dimming in 10 levels with each press
ability to choose dynamic transitions.# ability to adjust the speed of dynamic transitions.
delayed turn off after 30 seconds.
Operating temperature:
-20 to +60°C
Input/output connector:
Screw terminals +/- 12-24V DC or DC socket 5.5x2.1mm
Set color:
black
Receiver dimensions:
127 x 41 x 32 mm
Remote dimensions:
80 x 41 x 8 mm
Remote power supply:
1 cell 2035
Warranty:
2 years
Certificates:
CE, RoHS
In case of the need to pair or swap devices, please follow the instructions below
Coding:
1. Press and hold the DELAY OFF button on the remote and turn on the receiver to 12V power. The strip should respond after a few seconds by dimming to 50%.
2. Then, within 3 seconds, press DELAY OFF three times. The strip should dim to 10-25%.
The remote-dimmer pair is set.
Deleting the code:
1. With the receiver powered on, press and hold the FUN button on the remote for a few seconds. The strip should dim to 50%.
2. Within 3 seconds, press the FUN button three times. The LED strip should dim to 10-25%.
