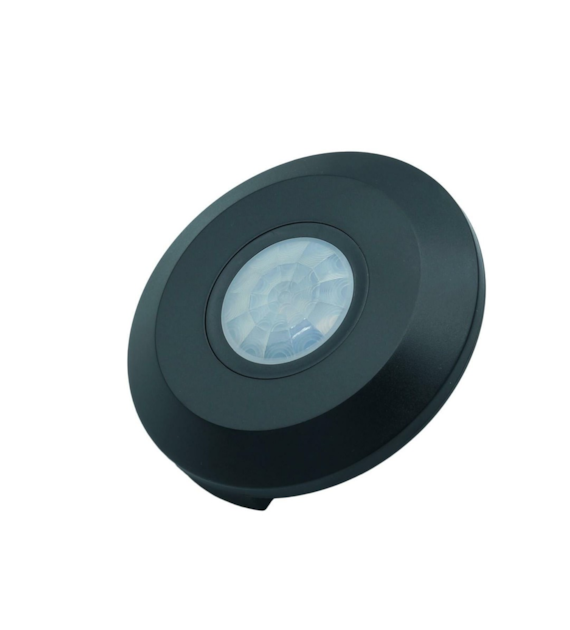

Ultra-flat black ceiling PIR sensor
Detection range:
8m at a temperature <24°C at a movement speed of 0.6-1.5 m/s
Turn-on time:
min 10sec ±3sec
max 15min ±2min
Maximum power of controlled lamps:
400W LED lamp
800W incandescent sources
Light sensor:
<3-2000LUX
Detection field:
360°
Operating temperature:
between -20°C and +40°C
Recommended mounting height:
2.2-4m
Power supply:
220-240V 50Hz
Sensor type:
infrared (PIR)
Dimensions:
diameter 102mm, height 24.9mm
Power consumption:
< 0.5W
Degree of protection:
IP20
Operating humidity:
<93%RH
Declarations:
RoHS, CE
Warranty:
2 years
The device is designed to turn on and automatically turn off after a set lighting time. It uses infrared emitted by the human body to operate - (PIR Passive Infra Red sensor).
